Problem Nonogram

From CSPLib: Nonograms are a popular puzzle, which goes by different names in different countries. Solvers have to shade in squares in a grid so that blocks of consecutive shaded squares satisfy constraints given for each row and column. Constraints typically indicate the sequence of shaded blocks (e.g. 3,1,2 means that there is a block of 3, then a gap of unspecified size, a block of length 1, another gap, and then a block of length 2). Below, there is an example (taken from Chapter 14 in Gecode documentation):

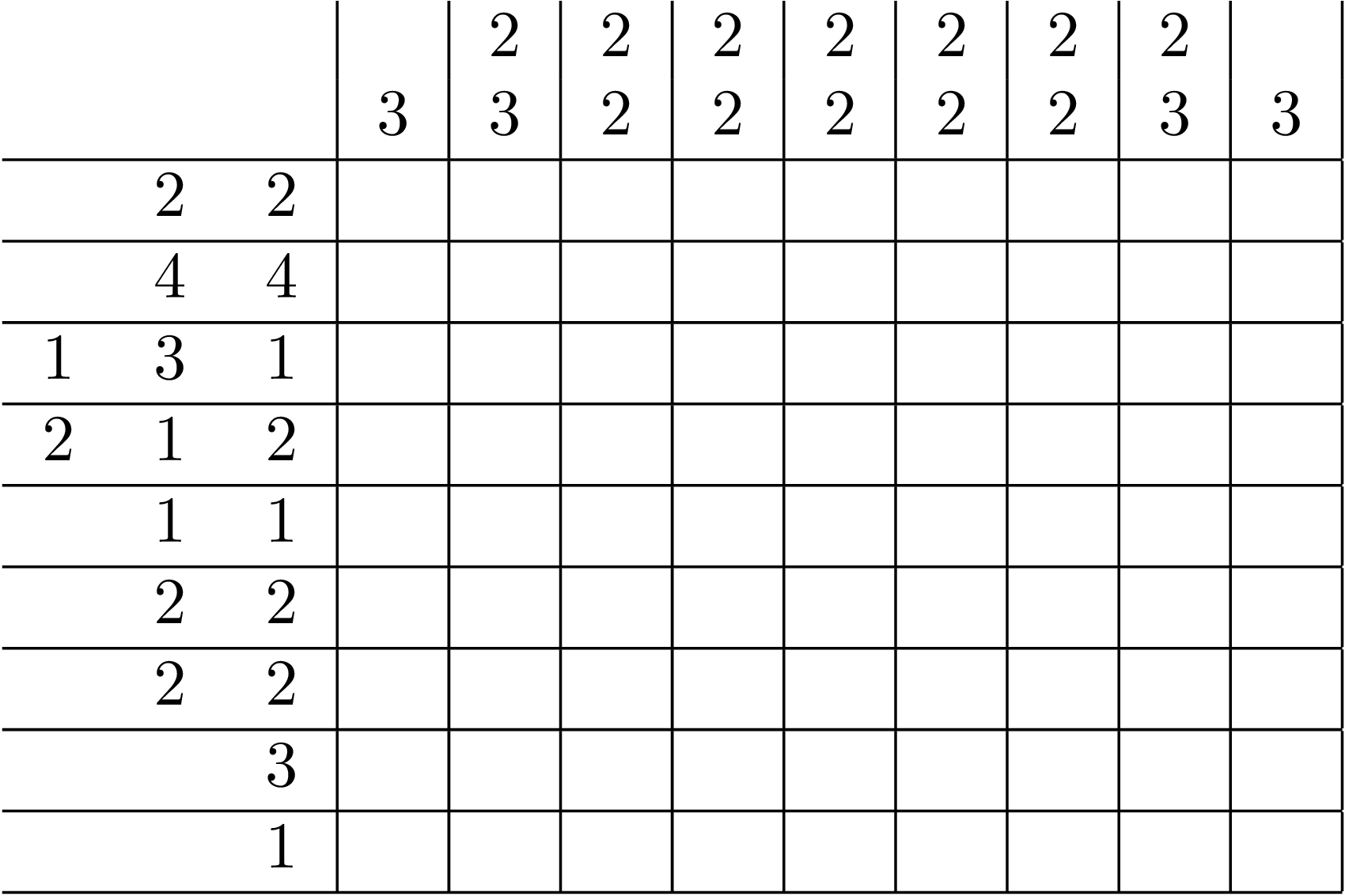

Puzzle: Nonogram Puzzle

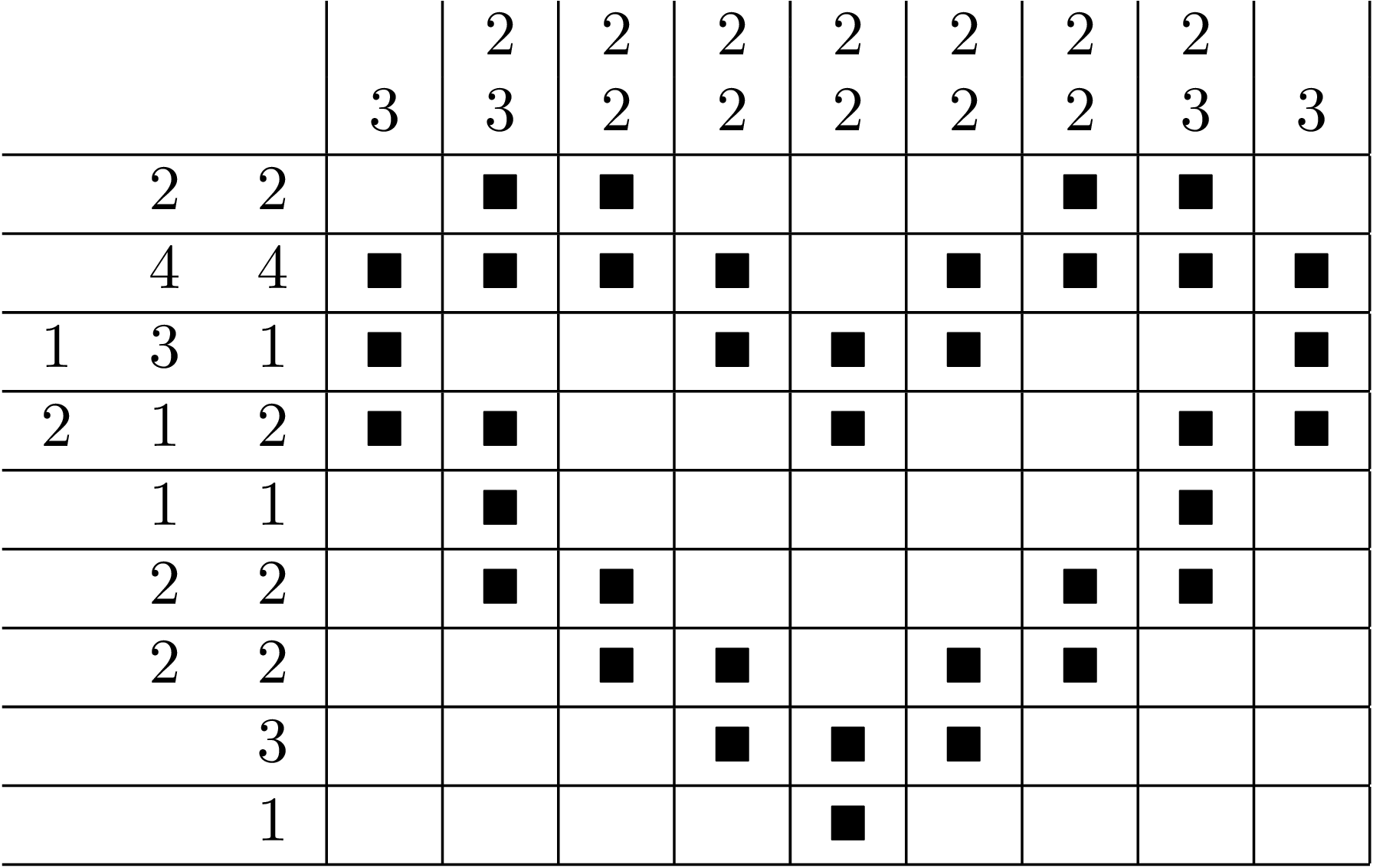

Solution: Nonogram Solution

To build a CSP (Constraint Satisfaction Problem) model, we need first to import the library PyCSP$^3$:

from pycsp3 import *

Suppose that the data (for a specific Nonogram puzzle) are initially given in a text file as follows:

a line stating the numbers of rows and columns,
then, for each row a line stating the number of blocks followed by the sizes of all these blocks (on the same line),
then, for each column a line stating the number of blocks followed by the sizes of all these blocks (on the same line).

It is possible to loas such a file, for example with:

from pycsp3.problems.data.parsing import register_fields, next_int

register_fields("https://www.cril.univ-artois.fr/~lecoutre/heart.txt")

nRows, nCols = next_int(), next_int()
rows = [[next_int() for _ in range(next_int())] for _ in range(nRows)]
cols = [[next_int() for _ in range(next_int())] for _ in range(nRows)]

However, here, we will consider a JSON file. Actually, this file can be found here. To load block patterns, we can then execute:

rows, cols = default_data("https://www.cril.univ-artois.fr/~lecoutre/heart.json")
nRows, nCols = len(rows), len(cols)

---------------------------------------------------------------------------
